Three Way Ball Valve Manufacturer, 3 Way Ball Valve Exporter, Supplier, Stockist, Importer. L Port / T Port / Diverter Type / Multiway / Multiport / Lube Oil Filter / Lube Oil Cooler Changeover Ball Valve.
3 Way Multiport Ball Valve Manufacturers
Mixing and Diverting type Three way L and T Port Full Bore Ball Valve
End Connection - Flanged End, Pressure Rating - Class 150 / 300
Valve Operation - Manual Hand Lever / Worm Gear / Pneumatic Rotary Quarter Turn Actuator
End Connection - Flanged End, Pressure Rating - Class 150 / 300
Valve Operation - Manual Hand Lever / Worm Gear / Pneumatic Rotary Quarter Turn Actuator

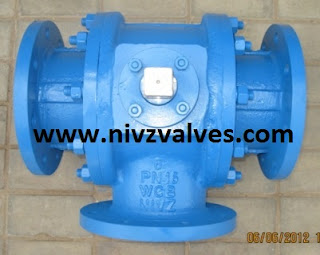

3 Way T Port Ball Valve Class 150 / 300 Series: F308T / F408T (Four Seat Supported, Square Body) Size - 1/2" (DN15) to 8" (DN200).3 Way L Port Ball Valve Class 150 / 300 Series: F508L / F608L (Two Seat Supported, Round Body) Size - 1/2" (DN15) to 12" (DN300)
3 Way (Three Way) Ball Valve Manufacturing Size Range: DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch and DN300/300mm/12”/Twelve Inch Size.
Nivz Valves & Automation offers a tremendous value in Three Way Ball Valve. 3 Way Ball Valve is a Specialty of “Nivz”, a leading manufacturer, supplier and exporter of Ball Valve and Actuation.
We have a wide Range/Model of Three Way Ball Valve in Carbon Steel, Stainless Steel, Cast Iron and others metal on special request.
Our 3 Way Ball Valve selection covers Full Port, Flanged End with Manual Hand Lever, Gear Box, Pneumatic, Electrical Actuator Operation.
Three way ball valves have an L or T Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three. Mixing and Diverting Type Three Way Ball Valves are also available. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.
Nivz 3 Way Ball Valve features Four/Two seats for equal seat loading. Multiple Gland Packing V Seal & Spring Tension Washer gives zero leakage from gland portion.
Our 3 Way Ball Valves are best suitable for all industrial applications. Nivz 3 Way Ball Valve application covers for Lube Oil Cooler 3 Way Ball Valve, Lube Oil Filter 3 Way Ball Valve, Duplex Heat Exchager 3 Way Ball Valve, Duplex Type Basket Strainer 3 Way Ball Valve, Duplex Filter 3 Way Ball Valve, Mixing and Diverting Type 3 Way Ball Valve, Multiport 3 Way Ball Valve, Pump By-Pass Line 3 Way Ball Valve, Diverter 3 Way Ball Valve, Extened Stem 3 Way Ball Valve & Jacketed 3 Way Ball Valve can also available on special request.
For screwed end type we provide BSP/BSPT/BSPP/NPT Female Thread as per customer choice. Socket weld end Nipple End Valve also can manufactuing on order basis. Multipor Valve available in Cast Carbon Steel (C.S - ASTM A216 GR. WCB), S.S. 304/316/304L/316L (ASTM A 351 GR. CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel - LTCS (ASTM A 352 GR. LCB/LCC), Alloy 20, Monel and Others of request. 3 Way Ball Valve application is for Mixing, Diverting & Blending.
Our manufacturing range of 3 Way Ball Valve starts from size 1/2" to 12", Pressure Rating - 150# / 300# / PN10 / PN16 / PN25 / PN40 / PN64.
Nivz all 3 Way Ball Valves are supplieed with PTFE V Ring gland packing for long life zero leakages from gland area. For High Pressure application and Oil-Gas application we also do provide Fire Safe type design for better performance of valve.
Nivz multiway ball valves are satisfactory perfrom in various Power Plant in Lube Oil Cooler and Filter Application. This application covers both valves operate by single Hand lever or Gear mechanism, Lube Oil cooler can be vertical or horizontal position and center distance between both valve up to 5 meter.
Our lube oil 3 port valve performs at present in three Captive Power Plant at Cement Industries (major install by Thermax Ltd. / HTC China), one in KSK Power Energy and one more in Godavari Green Energy Ltd. Satisfactory performance report give by customer.
Nivz Valves & Automation Three Way Ball Valve Manufacturer, 3 Way Ball Valve Exporter, Supplier, Stockist, Importer. L Port / T Port / Diverter Type / Multiway / Multiport / Lube Oil Filter / Lube Oil Cooler Changeover Ball Valve with Pneumatic Rotary Actuator, Motorized and Electrical Actuator Operated.
Three Way Ball Valve Operation & Option
Opertion
Nivz 3 Way Ball Valves mostly supplied with manual hand lever operated or quartrer gear (worm-gear type) unit operated, depend on valve size.
Nivz 3 Way Ball Valves mostly supplied with manual hand lever operated or quartrer gear (worm-gear type) unit operated, depend on valve size.
We are also manufacturing Ball Valves with Pneumatic quarter turn actuator or Electrical actuator operated for automation. We also manufacturing Pneumatic Actuator Operated 3 Way Ball Valve, Remote operated 3 Way Ball Valve, Auto 3 Way Ball Valve, Pneumatic Actuated 3 Way Ball Valve, 3 Way Diverter Ball Valve, 3 Way Fire Safe Design Auto Ball Valve, Gear Actuator Operated 3 Way Ball Valve, Pneumatic Operated 3 Way L Port Ball Valve, Pneumatic Actuated 3 Way T Port Ball Valve, Pneumatic Multiport 3 Way Ball Valve. We recommend for Gear Operated 3 Way Ball from valve size from 4" x 300# & 6" x 150# Size. Extended Bonnet 3 Way Ball Valve, Cryogenic Ball Valve also available on request.
Option
- Handle Locking Arrangement
- Multiport Ball Valve (Three Way / Four Way)
- Extended Handle
- Extended Bonnet
- Limit Switches
- Pneumatic Rotary Actuator Operated Ball Valve
- Single (Spring Return)/Double Acting Actuator
- Electrical Actuator Operated Ball Valve
- Tailor Made Ball Valve
Design & Testing International Standard of 3 Way Ball Valve
| Design Standard | : | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) |
| Flange To Flange Distance | : | Mfg. Standard |
| End Connection | : | Flanged End to ANSI B 16.5, Class 150 / 300 |
| : | BS 10 Table D / E / F / H | |
| : | PN 6 / PN 10 / PN 16 / PN 25 / PN 40 | |
| : | DIN Standard / JIS Standard / IS Standard | |
| Manufacuring Size Range | : | 1/2" (DN15) to 12"(DN 300) |
| Pressure Rating of Valve | : | 150# / 300# |
| : | PN 10 / PN 16 / PN 25 / PN 40 | |
| Valve Operation | : | Manual Hand Lever / Worm-Gear Actuator Operated |
| : | Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator |
MOC (Bill of Material - BOM) for 3 Way Ball Valve
| Body & Insert | : | ASTM A 216 GR. WCB (Cast Carbon Steel) |
| : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| : | ASTM A352 Gr. LCA / LCB / LCC | |
| : | NACE MR0175 / NACE MR | |
| Ball | : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) |
| : | ASTM A 182 F304 / F316 (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 182 F304L / F316L (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| Stem | : | ASTM A 276 T - 304 / 316 (SS 304 / SS 316) |
| : | ASTM A 276 T - 304L / 316L (SS 304L / SS 316L) | |
| : | ASTM A 276 T - 410 (SS 410) | |
| Ball Seat & BodySeal | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT |
| : | PEEK / Delrin / Grafoil - Graphite Ring | |
| Gland Packing | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT |
| : | Grafoil - Graphite Ring |
