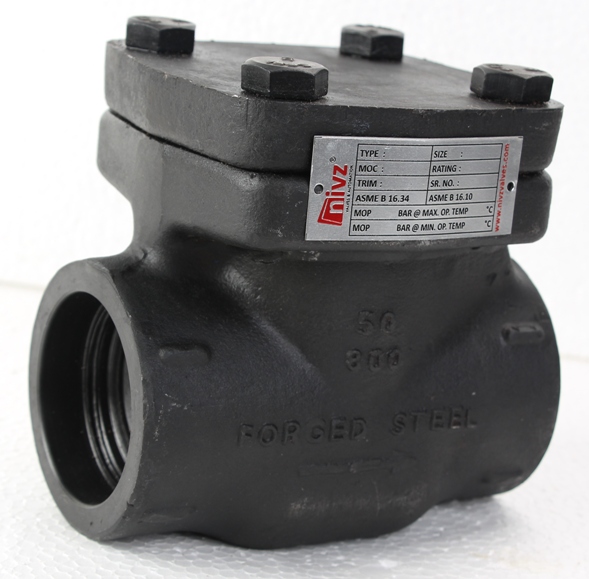

Forged Steel Lift Check Valve

Forged Steel Lift Check Valve Manufacturer, A 105, F11, F22, F304L, F316L Material, Forged Non Return Valve, Exporter, Stockist, Supplier. Horizontal Piston Type Lift Check Valve Ready Stock.

Heavvy Rugger Body as per Design Standard - API 602 / BS 5352 / ASME B 16.34
End Connection - Socket Weld / Butt Weld / Threaded (Screwed) - BSP or NPT
Pressure Rating - 800# / 1500#

Forged Steel Piston Lift Check Valve Rating Class 800 - Model Series: FLC80/FLC80S (Threaded/Socket Weld)
Forged Steel Piston Lift Check Valve Rating Class 1500 - Model Series: FLC150/FLC150S (Threaded/Socket Weld)Forged Steel Piston Life Check Valve Rating Class 150/300/600 - Model Series: FLC15F/30F/60F (Flanged End)

Nivz make Forged Steel Lift Type Check Valves are manufactured as per BS-5352/API 602/ASME B 16.34 Standard and Tested to BS EN ISO 12266-1/API 598 Standard.

Nivz Valves & Automation designed piston type horizontal lift type check valve incorporating self-cushioning effect.

Body Guided piston assuring accurate return to seat ring to achieve leak tightness. Nivz manufacturing range covers Regular Port and Standard Port both types of Forged Steel Check Valve. Regular Port non return valves have fast delivery or ready stock, for Standard Port check valve do manufactuing on order basis.

Nivz Valves and Automation manufacture Forged Steel Piston Lift Check Valve in wide range of Body Material like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L - Forgated Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22 - Alloy Steel to suit industrial application.

Nivz Forged Steel Lift Check valves are available under any Third party inspection also.

For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Check Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection.

For Flanged End Forged Steel Lift Check Valve flanges will be a welded with a valve body not integral forged.

Nivz a leading brand as Forged Steel Lift Check Valve Manufacturer, A 105, F11, F22, F304L, F316L Material, Forged Non Return Valve, Exporter, Stockist, Supplier. Horizontal Piston Type Lift Check Valve Ready Stock.

Salient Features of Forged Steel Piston Type Lift Check Valve

• A Compact But Extremely Sturdy Design for High Pressure & Temperature Service
• Bolted Cover Design, easy to open cover
• Piston Type Body Guide Disc
• Assure Perfect Alignment of Disc & Seat Ring
• Spring Loaded on request
• Stelited F6 Disc & Seat optional
• High Tesile B7/2H Fasteners

Forged Steel Piston Type Lift Check  Application

• Power Plants & Process Industries
• Petrochemical Plants & Refineries
• Cement & Fertilizers Plants
• Steel Plant
• Process & General Industries
• Sugar Industries & Distillery Plants
• Water, Steam, Gas, Oil & other Non-aggressive media

Design & Testing International Standard of Forged Lift Check Valve

Design Standard	:	BS 5352 / API 602 / ASME B 16.34
Inspection & Testing Standard	:	BS EN ISO 12266 - I (BS 6755 - I) / API 598 / ISO 5208
Face To Face Distance	:	BS 5352 / API 602 / ANSI B 16.10
End Connection	:	Flanged End to ANSI B 16.5, Class 150 / 300 / 600
	:	Screwed - Threaded End to ANSI B 1.20.1
	:	Socket Weld End to ANSI B 16.11
	:	Butt Weld End to ANSI B 16.25
Manufacuring Size Range	:	1/2" (DN15) to 2"(DN 50)
Pressure Rating of Valve	:	800# / 1500#
